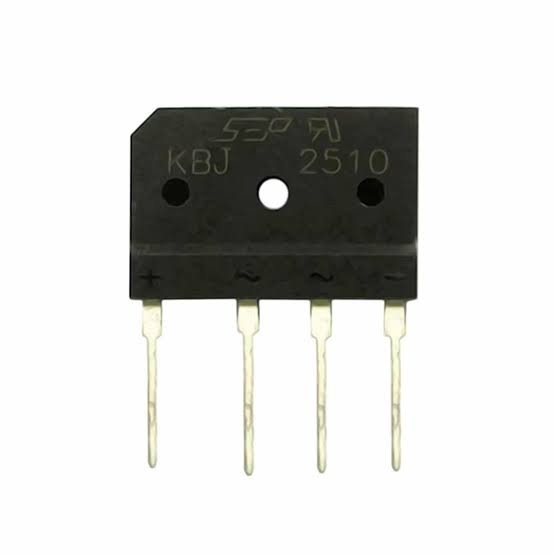

Bridge rectifier diode KBJ2510

KBJ2510 Bridge Rectifier Diode – 25A 1000V High Power AC to DC Conversion

The KBJ2510 is a high-efficiency, single-phase bridge rectifier designed to convert AC to DC with reliability and durability. With a current capacity of 25 Amps and a peak reverse voltage of 1000 Volts, it’s ideal for power supplies, battery chargers, inverters, and other high-current electronic applications.

Key Features:

Maximum Repetitive Reverse Voltage (Vrrm): 1000V

Maximum Average Forward Current (Io): 25A

Forward Voltage Drop (per diode): ~1.0V

High Surge Current Capability: Up to 400A

Operating Temperature Range: -55°C to +150°C

Case Type: KBJ (fully insulated epoxy case for heat resistance and safety)

Applications:

Suitable for use in AC-to-DC power conversion, UPS systems, motor control circuits, and industrial equipment.
